馬達啟動用PTC熱敏電阻
--殼體型
用途
◆ 冰箱、空調和熱泵等壓縮機的輔助啟動
◆ 單相感應電動機的輔助啟動
◆ 開關電源、變頻器、變頻空調主控板、微電機控制器等的沖擊電流抑制
特點
◆ 可靠的金屬電極:Ni(化學鍍或濺射)+Ag(絲網印刷)
◆ 堅固的電極適用于壓力夾持安裝,確保長壽命
◆ 無電氣噪音,易安裝
◆ 選擇芯片尺寸和居里點可為啟動提供最佳沖擊電流和動作時間
◆ 高的耐電壓和耐沖擊電流能力
◆ 安規認可:UL&CUL、VDE、CQC
◆ 符合RoHS指令
型號及參數
芯片型(MZ9系列)
產品型號 |
25°C零功率電阻 |
最大電壓 |
最大電流 |
破壞電壓 |
居里溫度 |
直徑x厚度 |
R25(Ω) |
Vmax(V) |
Imax(A) |
VBD(V) |
Tc(°C) |
(mm) |
|
MZ9-3R3□X3S1625 |
3.3 |
160 |
12 |
320 |
135 |
16x2.5 |
MZ9-3R9□X3S1625 |
3.9 |
180 |
12 |
360 |
||
MZ9-4R7□X3S1625 |
4.7 |
180 |
12 |
420 |
||
MZ9-5R0□X0S1625 |
5 |
200 |
12 |
480 |
105 |
|
MZ9-5R5□X2S1625 |
5.5 |
200 |
12 |
450 |
120 |
|
MZ9-6R8□X0S1625 |
6.8 |
200 |
10 |
480 |
105 |
|
MZ9-6R8□X3S1625 |
6.8 |
200 |
10 |
450 |
135 |
|
MZ9-10R□X0S1625 |
10 |
200 |
10 |
500 |
105 |
|
MZ9-10R□X3S1625 |
10 |
200 |
8 |
500 |
135 |
|
MZ9-15R□X3S1625 |
15 |
350 |
8 |
700 |
135 |
|
MZ9-22R□X3S1625 |
22 |
350 |
8 |
700 |
||
MZ9-33R□X3S1625 |
33 |
355 |
6 |
720 |
||
MZ9-47R□X3S1625 |
47 |
400 |
5 |
720 |
||
MZ9-68R□X3S1625 |
68 |
450 |
4 |
800 |
||
MZ9-5R0□X2S1725 |
5 |
200 |
12 |
450 |
120 |
17.5x2.5 |
MZ9-6R8□X2S1725 |
6.8 |
200 |
10 |
500 |
||
MZ9-10R□X2S1725 |
10 |
200 |
10 |
550 |
||
MZ9-20R□X2S1725 |
20 |
320 |
8 |
650 |
||
MZ9-3R3□X2S2025 |
3.3 |
160 |
12 |
350 |
135 or 120 |
20x2.5 |
MZ9-3R9□X2S2025 |
3.9 |
180 |
12 |
400 |
||
MZ9-4R7□X3S2025 |
4.7 |
180 |
12 |
420 |
||
MZ9-5R6□X3S2025 |
5.6 |
180 |
12 |
450 |
||
MZ9-6R8□X3S2025 |
6.8 |
200 |
10 |
500 |
||
MZ9-10R□X3S2025 |
10 |
230 |
9 |
550 |
||
MZ9-12R□X3S2025 |
12 |
250 |
8.5 |
600 |
||
MZ9-15R□X3S2025 |
15 |
350 |
8 |
700 |
||
MZ9-22R□X3S2025 |
22 |
350 |
8 |
720 |
||
MZ9-33R□X3S2025 |
33 |
355 |
6 |
750 |
||
MZ9-47R□X3S2025 |
47 |
400 |
5 |
800 |
||
MZ9-68R□X3S2025 |
68 |
450 |
5 |
860 |
||
MZ9-3R9□X2S2032 |
3.9 |
180 |
16 |
350 |
120 |
20x3.2 |
MZ9-12R□X2S2032 |
12 |
350 |
8 |
700 |
||
MZ9-15R□X2S2032 |
15 |
350 |
8 |
750 |
||
MZ9-30R□X2S2032 |
30 |
450 |
7 |
800 |
||
MZ9-33R□X2S2032 |
33 |
385 |
8 |
750 |
||
MZ9-40R□X2S2032 |
40 |
450 |
8 |
800 |
||
MZ9-25R□X2S2050 |
25 |
400 |
9 |
800 |
120 |
20x5.0 |
MZ9-38R□X2S2050 |
38 |
400 |
9 |
800 |
||
MZ9-50R□X2S2050 |
50 |
410 |
8 |
800 |
||
MZ9-75R□X2S2050 |
75 |
410 |
6 |
800 |
備注:
1.□代表R25的偏差范圍M:±20% X:±25% N:±30% S:特殊
2.其它規格或參數可以定制
殼體型(MZ92D系列)
•結構及尺寸

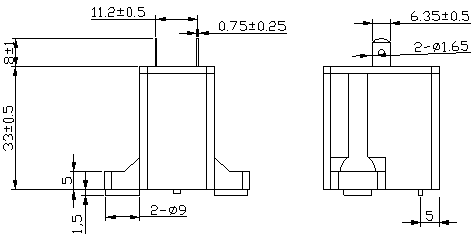

A型殼體結構
B型殼體結構
型號及參數
產品型號 |
25°C零功率電阻(R25) |
最大電壓(Vmax) |
最大電流(Imax) |
消耗功率(P) |
(Ω) |
(Vac) |
(A) |
(W) |
|
MZ92D-3R9□ |
3.9 |
160 |
12 |
4.0 |
MZ92D-4R7□ |
4.7 |
180 |
12 |
3.5 |
MZ92D-5R0□ |
5.0 |
180 |
12 |
3.5 |
MZ92D-6R8□ |
6.8 |
200 |
15 |
3.5 |
MZ92D-10R□ |
10 |
200 |
15 |
3.5 |
MZ92D-15R□ |
15 |
350 |
12 |
3.2 |
MZ92D-22R□ |
22 |
350 |
15 |
3.2 |
MZ92D-25R□ |
25 |
400 |
12 |
3.2 |
MZ92D-30R□ |
30 |
450 |
12 |
3.2 |
MZ92D-33R□ |
33 |
450 |
12 |
3.2 |
MZ92D-38R□ |
38 |
450 |
12 |
3.2 |
MZ92D-40R□ |
40 |
450 |
10 |
3.2 |
MZ92D-47R□ |
47 |
450 |
12 |
3.2 |
MZ92D-50R□ |
50 |
500 |
10 |
3.2 |
MZ92D-68R□ |
68 |
500 |
9 |
3.2 |
MZ92D-101R□ |
100 |
500 |
9 |
3.2 |
備注:
1.□代表R25的偏差范圍M:±20% X:±25% N:±30% S:特殊
2.其它規格或參數可以定制
3.消耗功率參數是在施加Vmax條件下測試
